1: Â Â Â Â login to the switch through TELNET OR SSH
2:Â Â Â Â Standard configuration does not contain a password

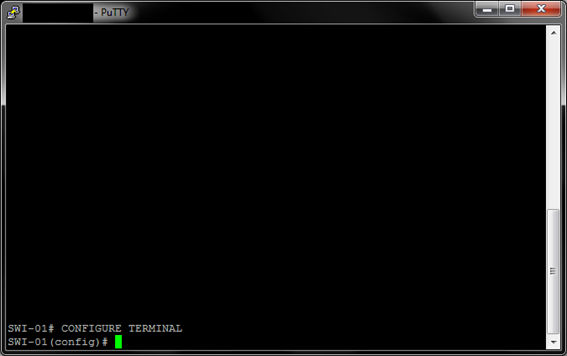

3:Â Â Â Â type configure terminal

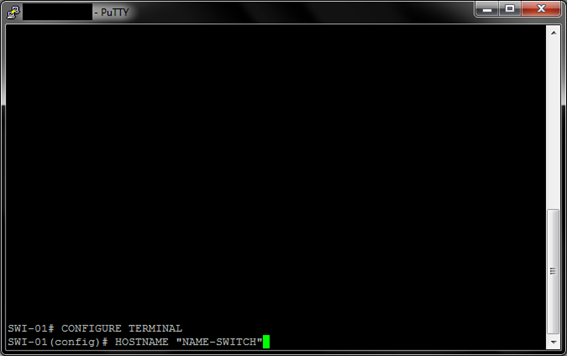

4:Â Â Â Â type a hostname “name of the switch”.
5:Â Â Â Â Type vlan 1 and configure an ip address
6:Â Â Â Â Enter a default gateway

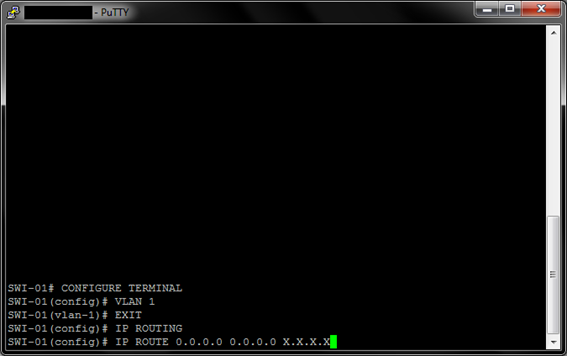

7:Â Â Â Â type ip routing & default route “ip route 0.0.0.0 0.0.0.0 x.x.x.x”
When you enable routing, and default route. Your clients get a new default gateway. (The switch will act as gateway for the clients.)
With this configuration you will be able to browse to other Vlan’s on the switch.

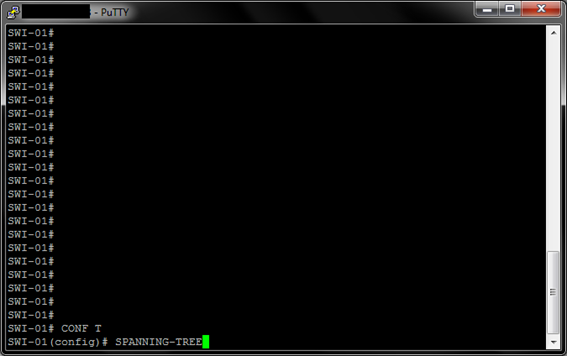

8:Â Â Â Â configure spanning-tree

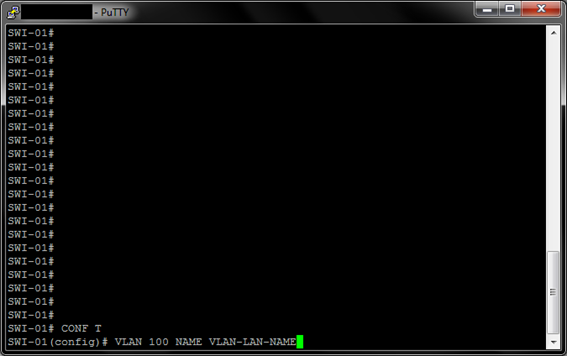

9:Â Â Â Â create a new VLAN (example. Vlan 100 )

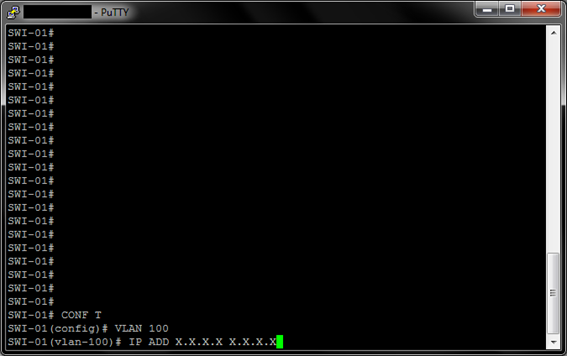

10:Â Â Â Â Give the new VLAN an IP Address

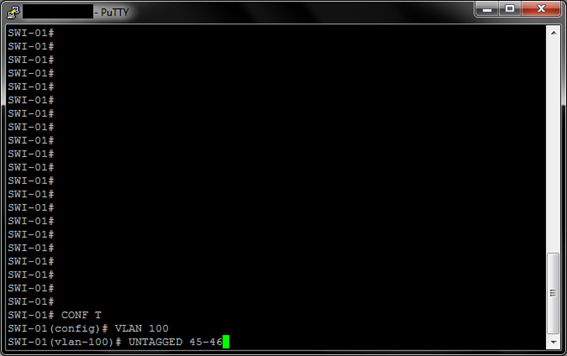

11:Â Â Â Â Untag ports on the siwtch which you want to use for the new VLAN
When you finished the configuration and you run “show running-config” you will see a configuration like below.
12:Â Â Â Â show running-config
please share the HP switches having ios version or not?
HP switches don’t have an IOS version.
The software version of the switch is W.14.38 how ever I recommend to upgrade to the latest software version of the HP 29210
any reason why i cant routed between vlans when using a dhcp server and helper?
vlan01: 172.19.0.0/16
vlan20: 172.16.0.0/16
thanks
You have 2 options in this case.
1. you let your router preform the routing options between the 2 subnets
or
2. you put your switch as default gateway for all internal hosts.
thanks for your tutorial.
why we must set a default-gateway and an ip route 0.0.0.0 ?
i want to say: the default-gateway and the ip route 0.0.0.0 it’s same thing no?
Because you need a device who is able to access the internet. And not items not the same with the default gateway other networks won’t find unspecified networks
if i replace the X.X.X.X in your tutorial:
hostname “SW”
ip default-gateway 149.9.90.25
ip routing
vlan 1
  name “DEFAULT_VLAN”
  untagged 2-28
  ip address 149.9.90.26 255.255.254.0
no untagged 1
  exit
vlan 2
  name “vlanone”
  untagged 1
  ip address 185.51.150.1 255.255.254.0
  exit
ip route 0.0.0.0 0.0.0.0 149.9.90.25
(fake IP but it’s for see where is the router and primary ip must to be).
it’s correct?
Correct and on the route you need a route who points to the ip of the switch a non 0.0.0.0 route
If you need toy route between the LANs on the switch than you need ip routing.
With the ip routing 1 disadvantage will show up that you are not able to create trunks. Maybe it’s fixed in newer software updates. But at the time of this written content it wasn’t possible.
Humm..
“Correct and on the route you need a route who points to the ip of the switch a non 0.0.0.0 route”
can you show me an ip route example for this ?
thanks!
What kind of device are you using for the gateway?
in the ip address example you use. you need to make an route on the gateway device like.
cisco iOS “ip route 185.51.150.0 255.255.240.0 149.9.90.26”
cisco ASA “route inside 185.51.150.0 255.255.240.0 149.9.90.26”
You might be able to use a routing protocol like ospf or rip. (I was supposing to time EIGRP but this is not possible because it cisco proprietary). Than you won’t have to think about static routes on the gateway device.
I use incase of cisco equipment EIGRP on the gateway device and on the L3 switch behind the cisco devices (both are cisco manufactured) this solves me a lot of maintenance on multiple devices. 🙂
I use a HP 2920, with the hp v1910 i’m able to do what i want but there are a limitation (8 vlan interfaces).
Cogent give me a /30 and i need to set the switch on this /30 and use the router as router for the server connected in the vlan.
you use the switch as default gateway for the internal LAN devices.. Than you need ip routing on the switch enabled. otherwise you won’t be able to communicate between the vlan’s.
Cogent is the ISP? I think? so they give you a /30 address but you are not going to use any firewalling etc?
I guess you have 1 external IP address given by the ISP ( Cogent ) and you need to translate it into internal addresses? Incase this I would suggest to look for a router (non-switch) or firewall device to make the connection with the ISP and to translate it back into your normal network. This would make it easier for you to maintain the configuration of the netwerk 🙂
and use the SWITCH as router for the server connected in the vlan.*
Cogent is the ISP, i have a /22 ip block for my servers. I don’t have the knowledge for configure a router and it’s diffcult to find a qualified person for do that.
With the V1910 it’s works good: i set
switch gate: 149.9.90.25 (cogent router)
switch ip: 149.6.90.26 (public ip)
185.51.150.0/32
gateway of vlan 149.6.90.26
ip of vlan: 185.51.150.1
for server in the vlan:
ip: 185.51.150.2-31
gateway 185.51.150.1
but with the 2910 it’s more difficult :/.
In idea, can you have a reference of Cisco router for small infrastructure? (and easy to configure).
On your previous reply. it should be more easy on the 2910 than on the 1910 (that in my case) this is because of the older cli on that device. where the 1910 has the former 3Com cli.
how ever on you second question. i suggest to look at a router the http://www.cisco.com/smb line. how ever you could think of using a draytek instead. It might be easier to configure. I would suggest to take the 2960 model of Draytek.
All the cisco devices has a web interface. how ever the models from the c800 series and up ( like the 1900 / 2900 ) has better functionality on CLI.
Ok thanks !
I try the solution for 2910 and if it’s don’t work i buy a Cisco router.
good luck with the setup 🙂
hello,
all is good! i have set Cogent router for defaut route and it’s work.
but i need to add the default route before enable ip routing or the switch say it’s not possible to set switch ip for default route (i set the first vlan with /30 of Cogent).
For information if visitor need example:
——————————————
hostname “HP-2920-48G”
module 1 type j9728a
no web-management
web-management ssl
ip default-gateway 140.5.90.25
ip route 0.0.0.0 0.0.0.0 140.5.90.25
ip routing
snmp-server community “public” unrestricted
snmp-server enable traps snmp-authentication standard
no snmp-server enable traps snmp-authentication extended
oobm
ip address dhcp-bootp
exit
router rip
redistribute connected
exit
vlan 1
name “DEFAULT_VLAN”
no untagged 1-12,23-44
untagged 3-22,45-48,A1-A2,B1-B2
ip address 140.5.90.26 255.255.255.252
exit
vlan 2
name “xx1”
untagged 1
ip address 158.40.110.1 255.255.255.224
exit
vlan 3
name “xx2”
untagged 2
ip address 158.40.110.33 255.255.255.224
exit
vlan 20
name “IPMI”
untagged 23-44
ip address 158.40.113.225 255.255.255.224
exit
no autorun
no dhcp config-file-update
no dhcp image-file-update
password manager
password operator
——————————————
